SWING OUT ARM PRO FORGE

SWING OUT ARM PRO FORGE

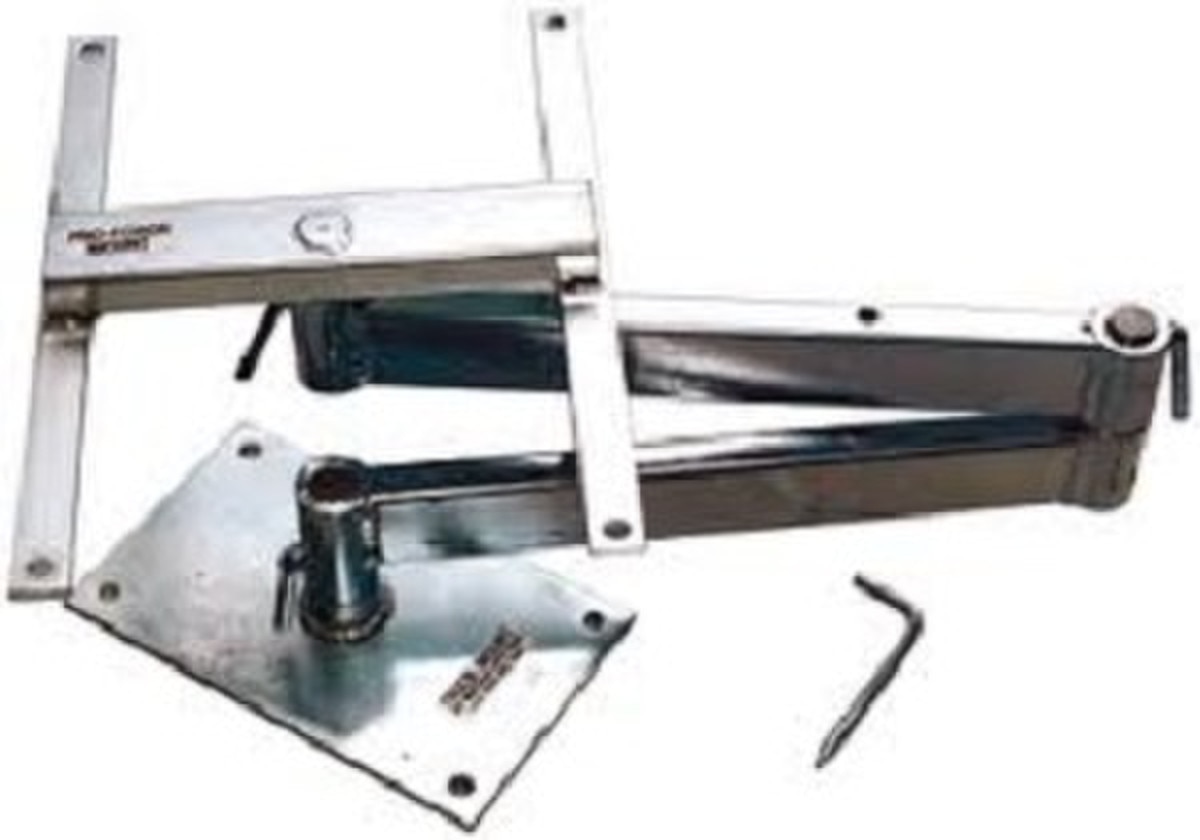

Pro Forge Swing Out - The swing out forge arm mounts to truck beds or work benches and folds away to save space.

Features;
-Pivot points are made from 3/8" heavy wall round tube and solid 7/8 round rod for tight tolerance and heavy duty performance.
-Heavy duty pivot points help prevent sagging when the forge is fully extended.
-Three pivot points so you can get the forge where you need it while your working and more options when stowing for travel.
-Zinc plated for years of service.
-Comes complete with all hardware except mounting bolts.

Dimensions:
-Truck mount plate 6"x 10"
-Forge mount bracket 15" X 10 1/2" (Pro-Forge Base)
-Total height to forge mounting plate 8 1/4"
-Total length closed 21 1/2"
-Total length full extended 44"

Made in the USA!
