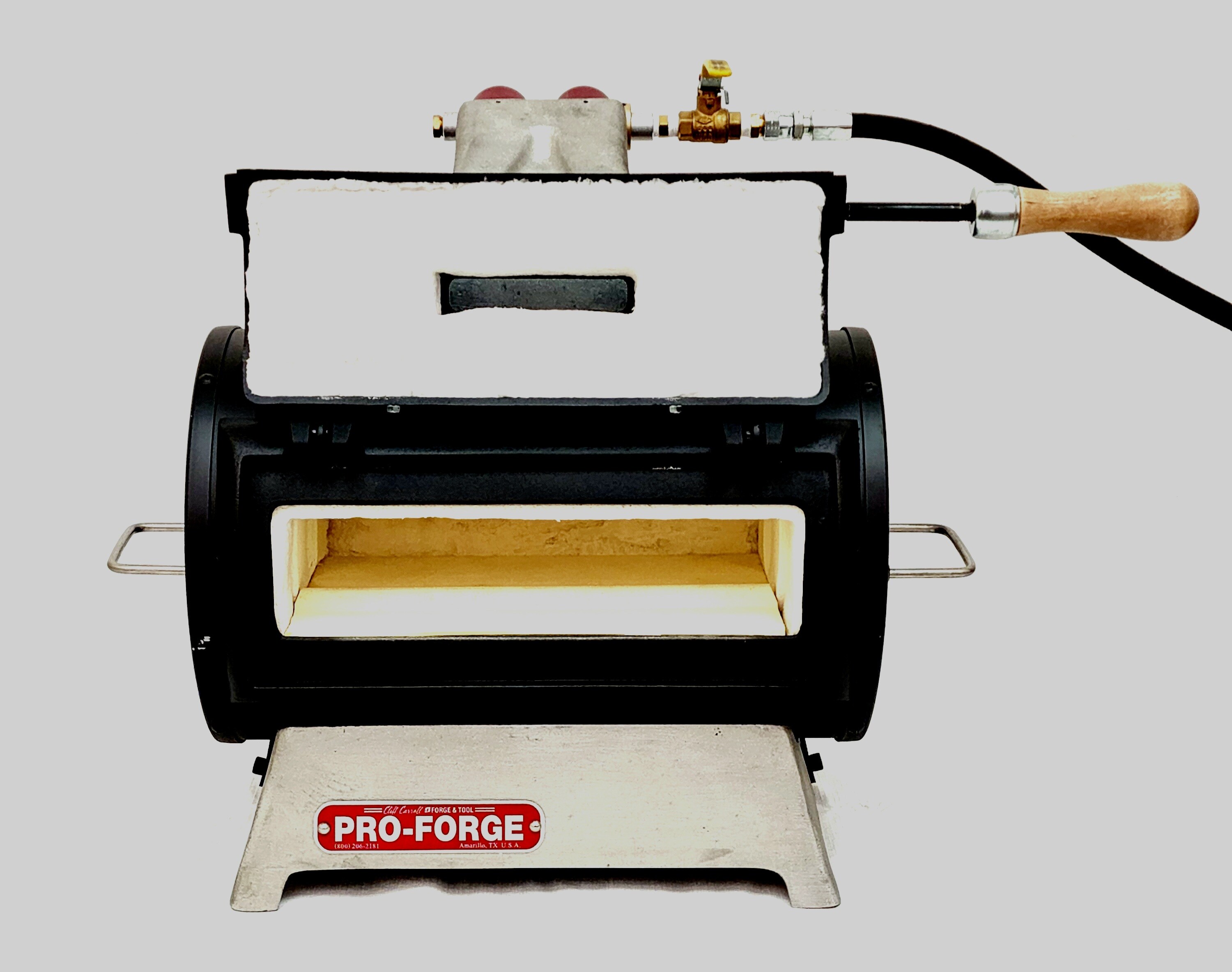

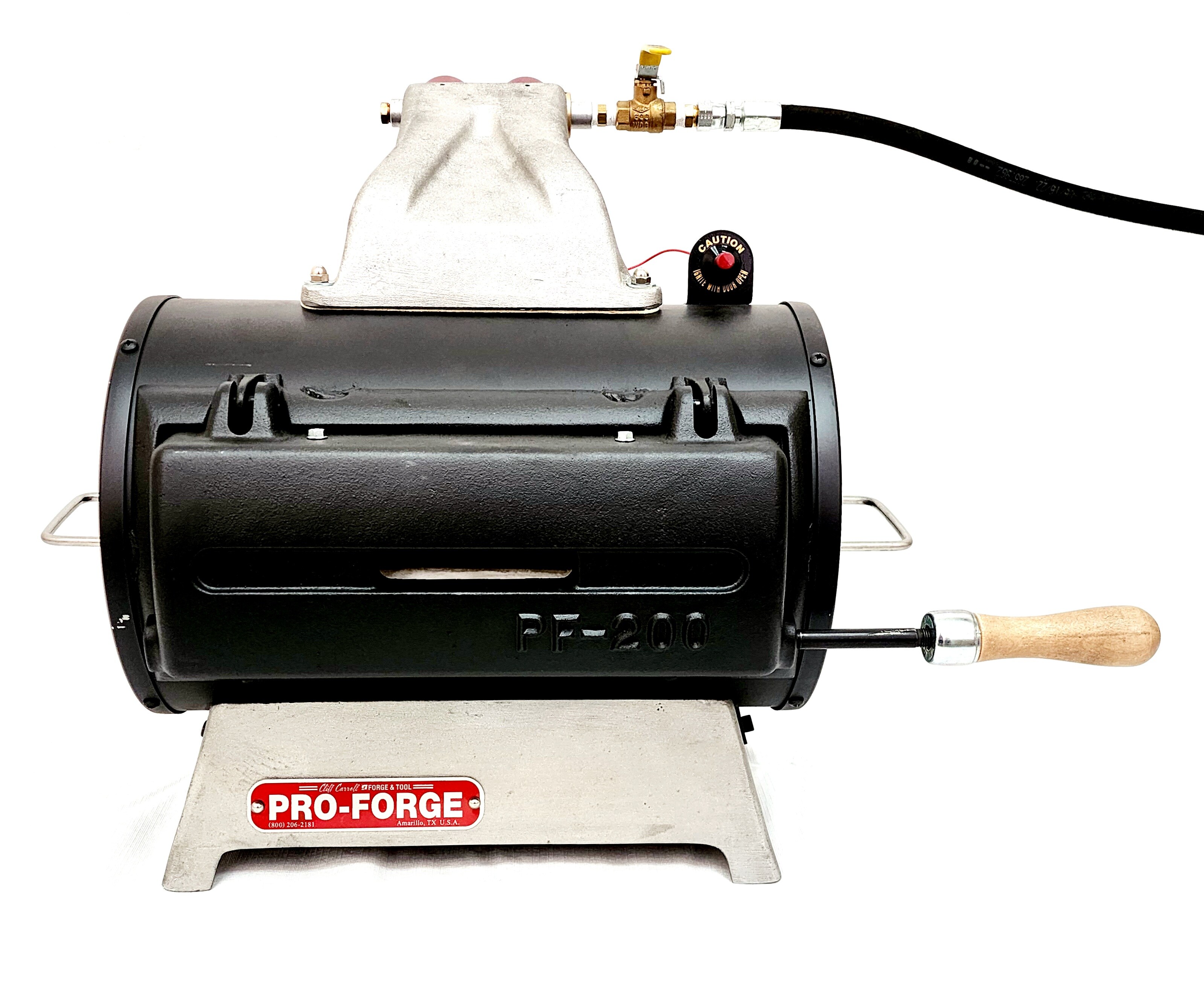

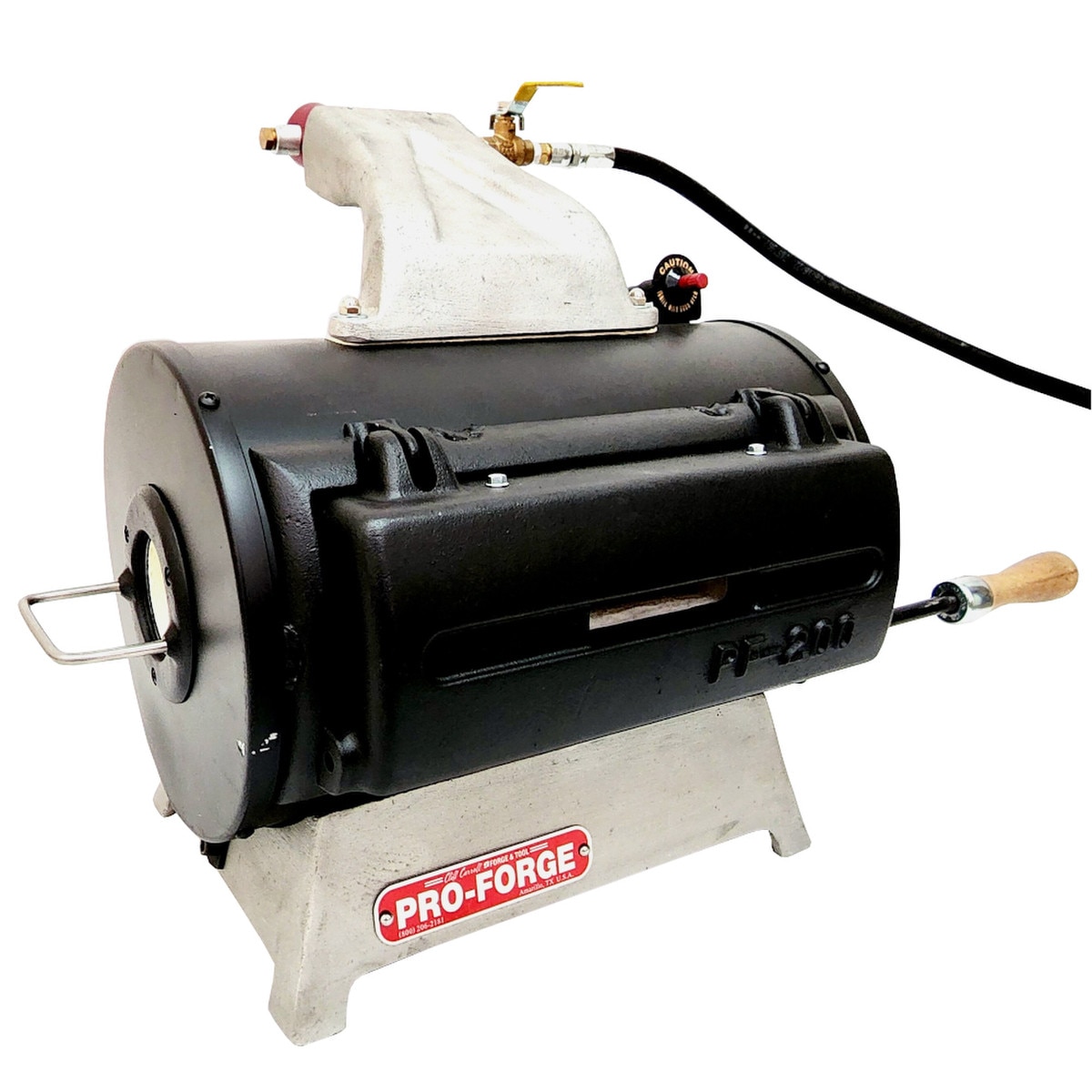

Pro-Forge Dual Port Forge
Clean, fast heat that’s easy to weld in. The Pro-Forge Dual Port Forge is designed to deliver what today’s professional farrier and blacksmith demands from a compact, efficient forge.

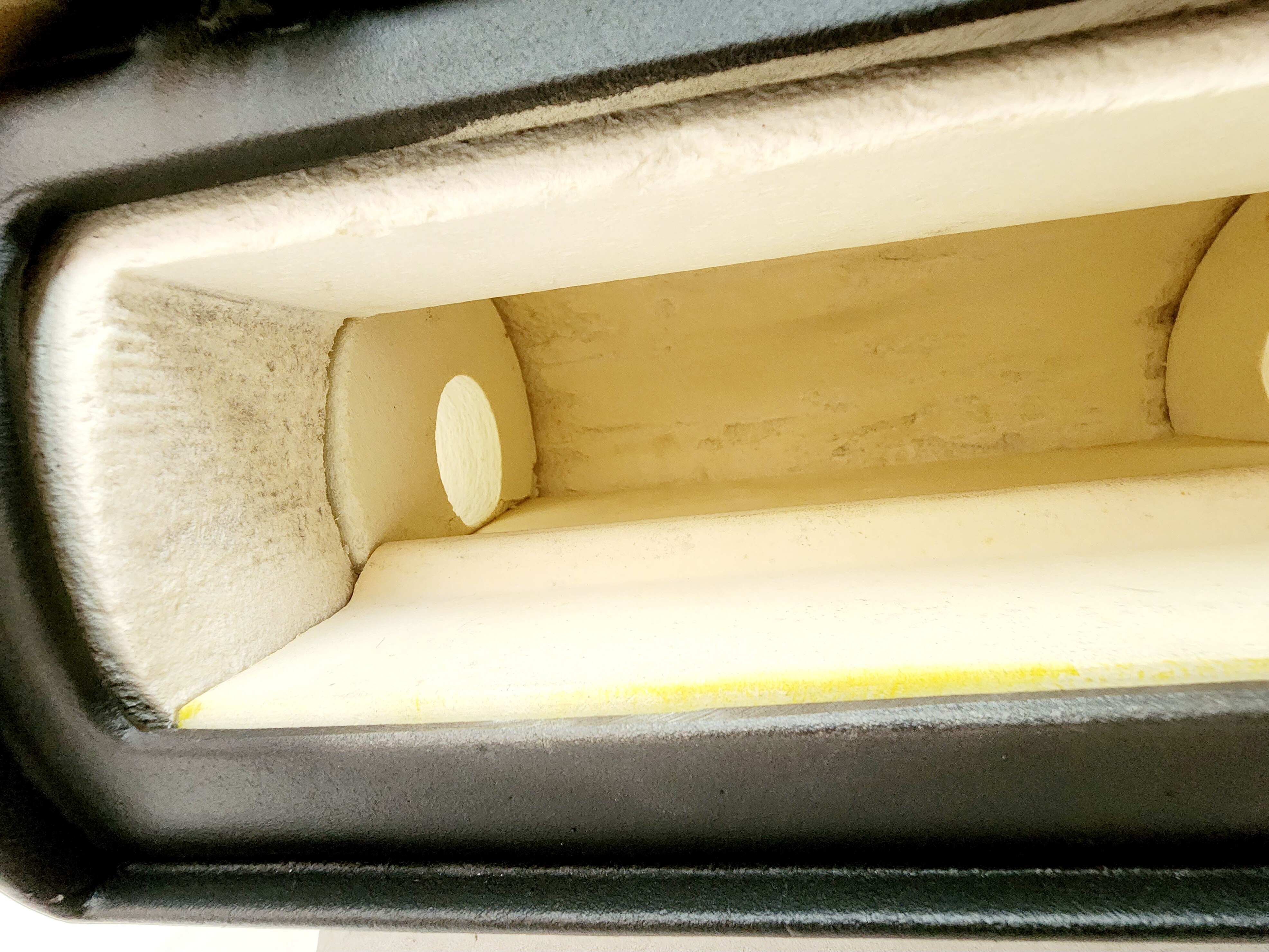

This dual port model features bar stock ports on both ends, cast iron doors that won’t warp, hassle free ignition, and Twin Instachange Jets that realign instantly after cleaning. Its round ceramic fiber liner and rugged manufacturing process ensure long term durability, even on rough roads.
Heats up fast and reaches forging temperature quickly without sacrificing fuel efficiency. One of the best compact forges on the market.
Made in the USA.
Specifications
- Exterior Dimensions: 16" L × 17-1/2" H × 15" W
- Door Opening: 12" × 3-1/2"
- Firebox Depth: 8"
- Temperature Range: 2450°F to 2650°F
- Working Pressure: Average 7 to 10 lbs | Welding 12 lbs
- Time to Heat: First heat approximately 4 minutes | Normal heats 2-1/2 to 3-1/2 minutes
- Forge Weight: 55 lbs
- Shipping Weight: 60 lbs
- Bar Stock Ports: Dual ports, one on each end
Items Included
Replacement Parts
Assembly Instructions
- Remove crown nuts from stud bolts on top of forge.
- Place burner on top of forge stud bolts.
- Replace crown nuts and tighten snugly using a 7/16" socket wrench.
- Attach hose to shut off valve.
- Attach other end of hose to regulator.
- Remove packing materials from inside forge.

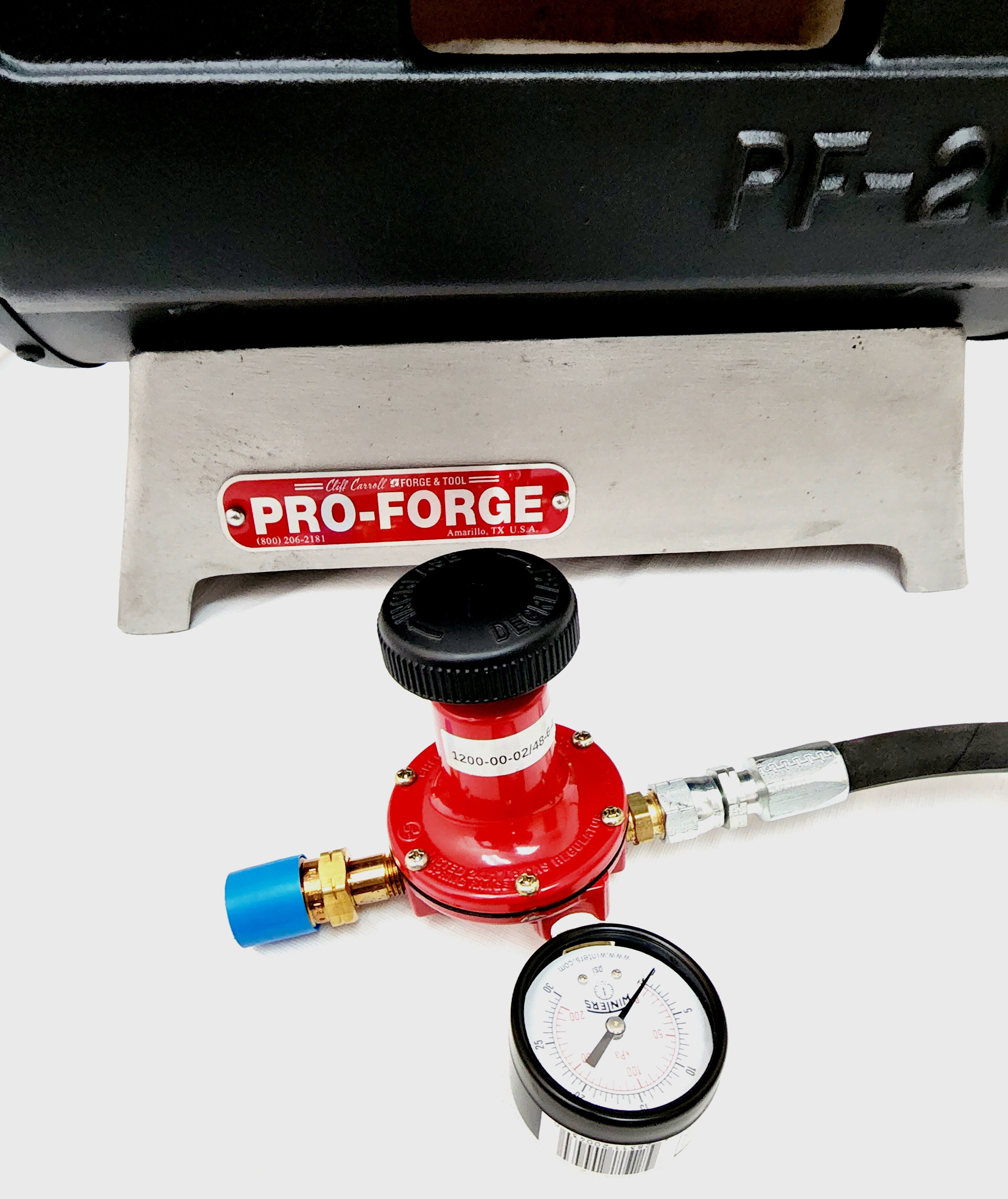

- Attach pressure gauge to regulator.
- Attach handle to right side of door.
- Insert igniter through bracket with ground wire facing down and tighten snugly.
- Insert porcelain igniter tip into burner and secure with Phillips screw.
Helpful Hint: If the forge fails to ignite after the first few attempts, remove the igniter and clip off approximately 1/16" from the silver tip of the prong, then re insert the igniter and ignite.
