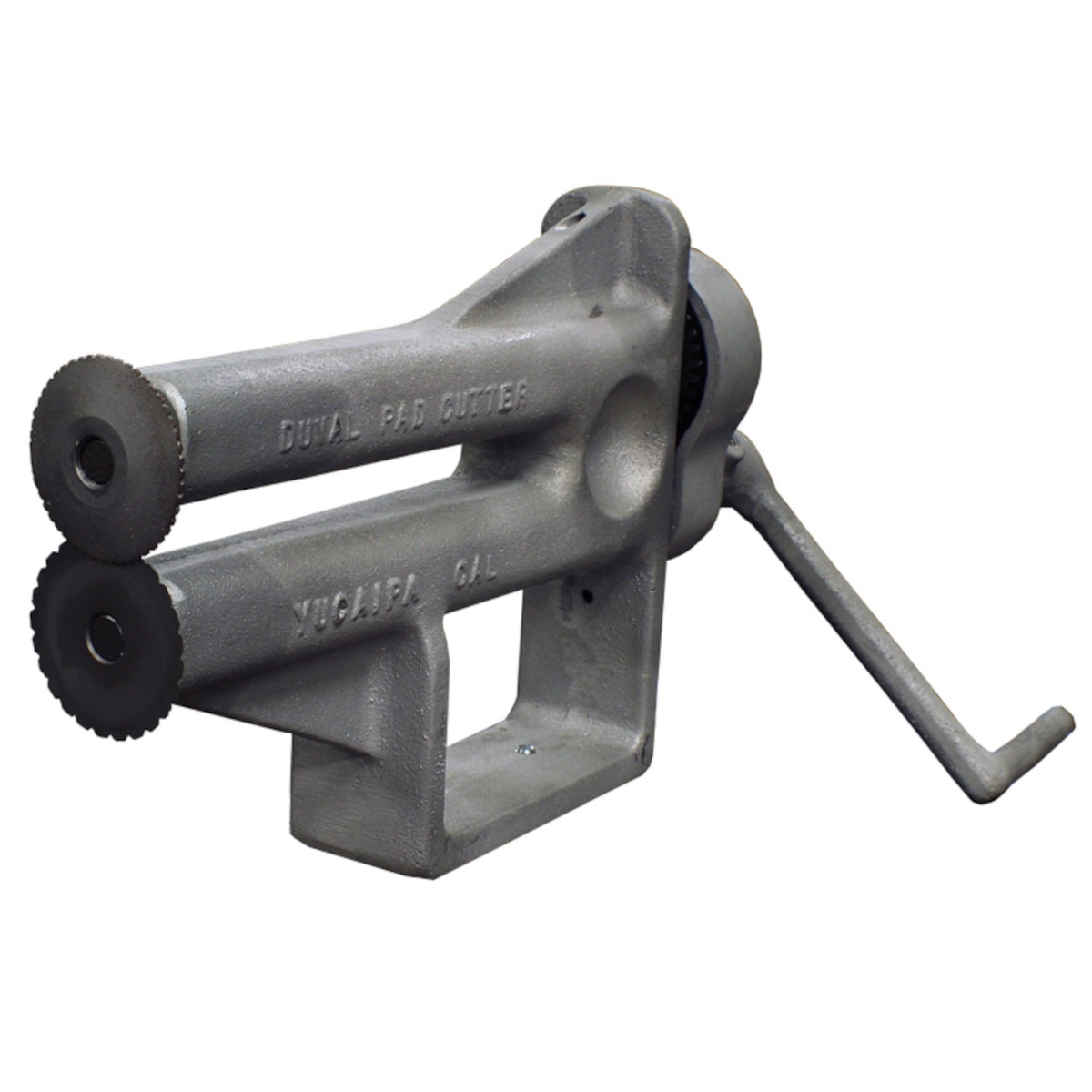

Duval Pad Cutter

Key Features

• Efficient Pad Cutting: Cuts leather and plastic hoof pads quickly and cleanly
• Reduces Physical Effort: Saves time and helps reduce wear and tear on your body
• Versatile Mounting: Can be mounted on a flat surface or fitted into a 7/8" or 1" hardy hole
• Tempered Steel Blades: Blades are designed for pad cutting and should be protected from shoe contact
• Replacement Parts Available: Replacement blades and replacement arm are available

Mounting Instructions

• Attach the mounting bracket to the bottom of the pad cutter using the pre-tapped holes.
• The mounting bracket fits into a 7/8" or 1" hardy hole for easy access.
• The pad cutter can also be mounted permanently to a bench or truck without using the bracket.

Cutting Pads

1. Shape the shoe to fit.
2. Place the shoe on the pad and mark the outline of the shoe.
3. Turn the handle as you feed the pad material into the cutter.
4. Feed pads from the side of the pad cutter marked “Duval Pad Cutter, Yucaipa, CA.”

Do not trim pads while mounted on the shoes. These blades are tempered steel and could chip if the shoe should bump them.

Product Details

• Tool Type: Hoof pad cutter
• Use: Cutting leather and plastic hoof pads
• Mounting Options: Flat surface, 7/8" hardy hole, or 1" hardy hole
• Blade Type: Tempered steel blades
• Replacement Parts: Replacement blades and replacement arm are available

Replacement Parts

• Duval Replacement Blades Set
• Duval Pad Cutter Replacement Arm
