Size 10 | Grand Circuit Denoix Suspensory Branch Hind | B
Details
Sold Individually
Note: These shoes are drop-shipped from the manufacturer and will arrive separately from the rest of your order.

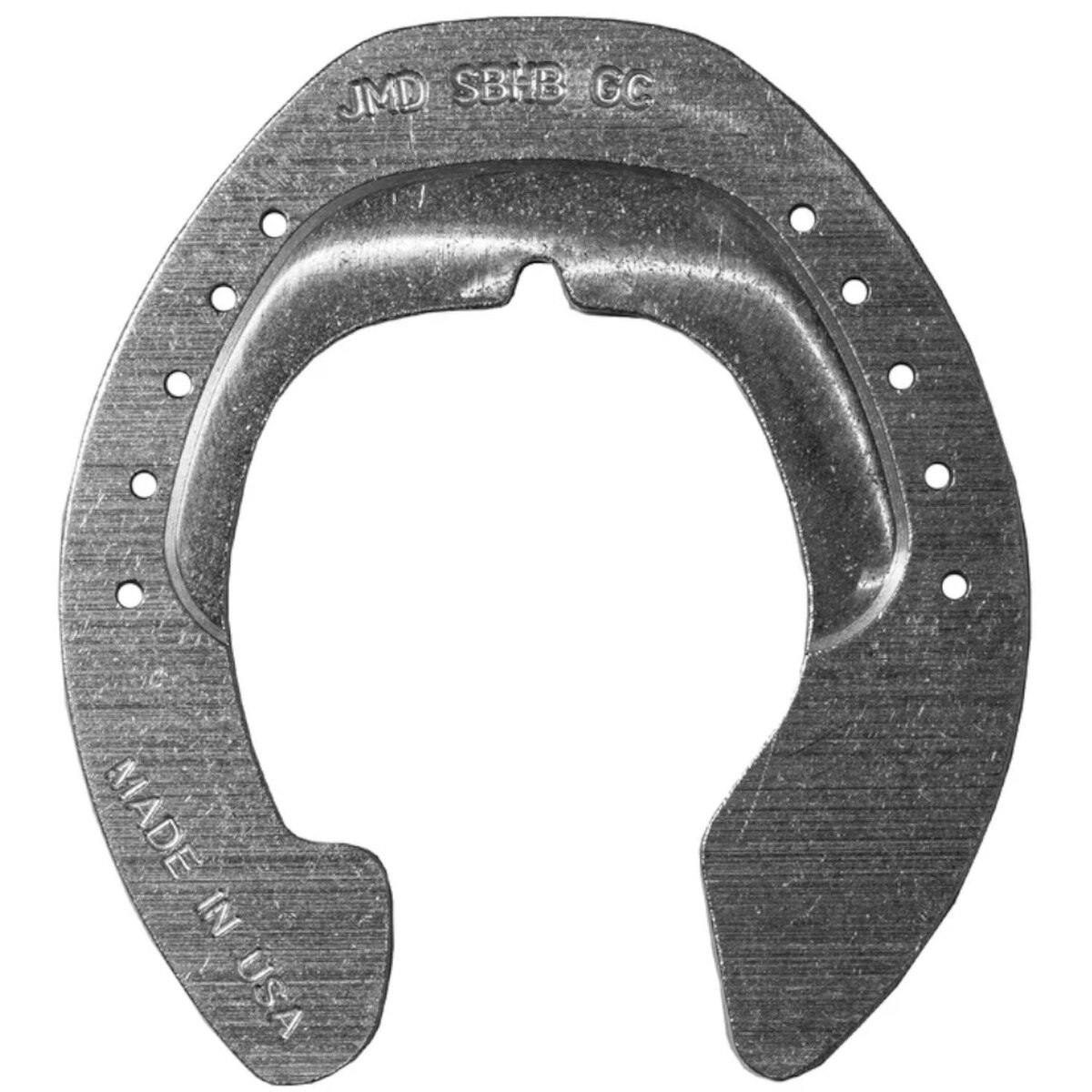

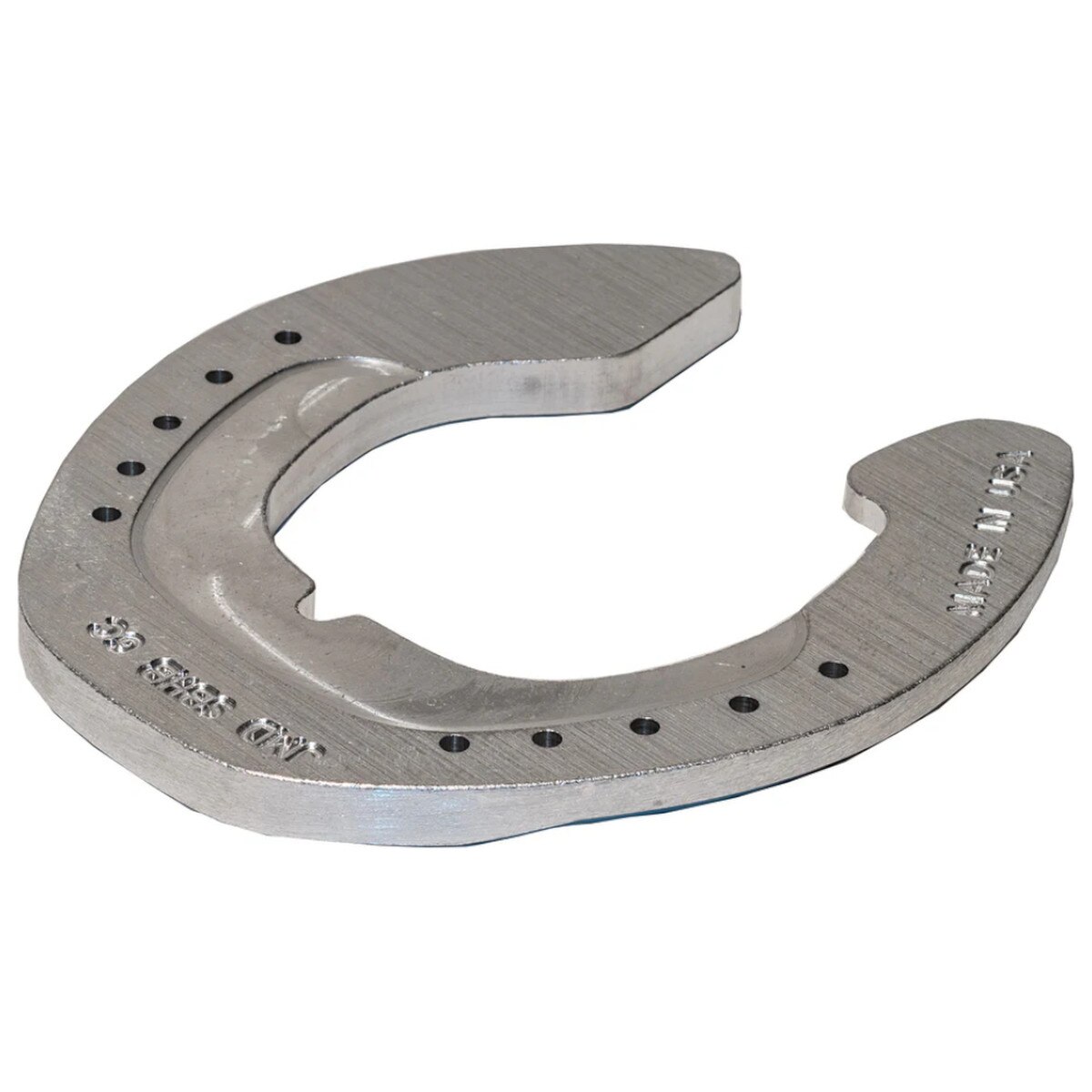

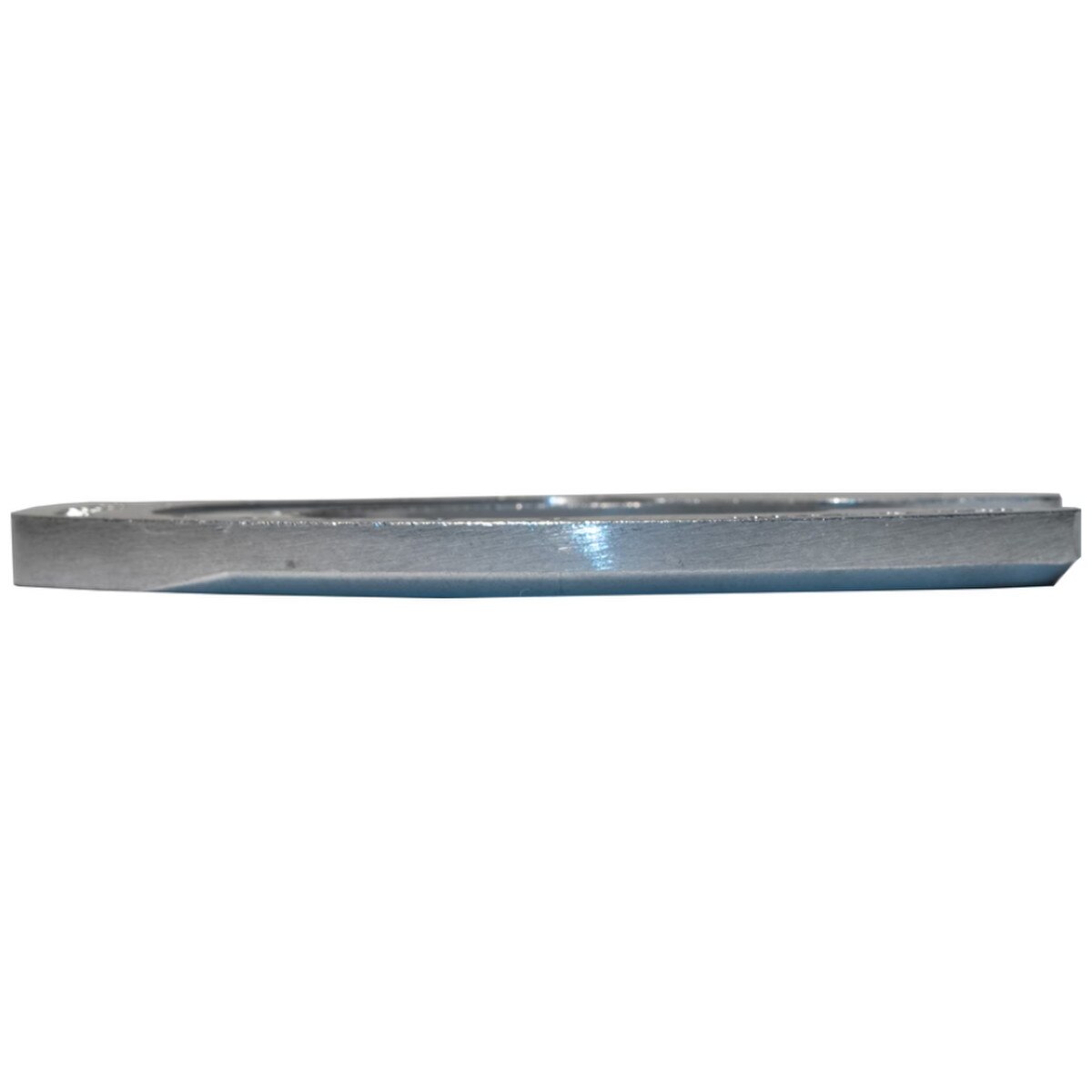

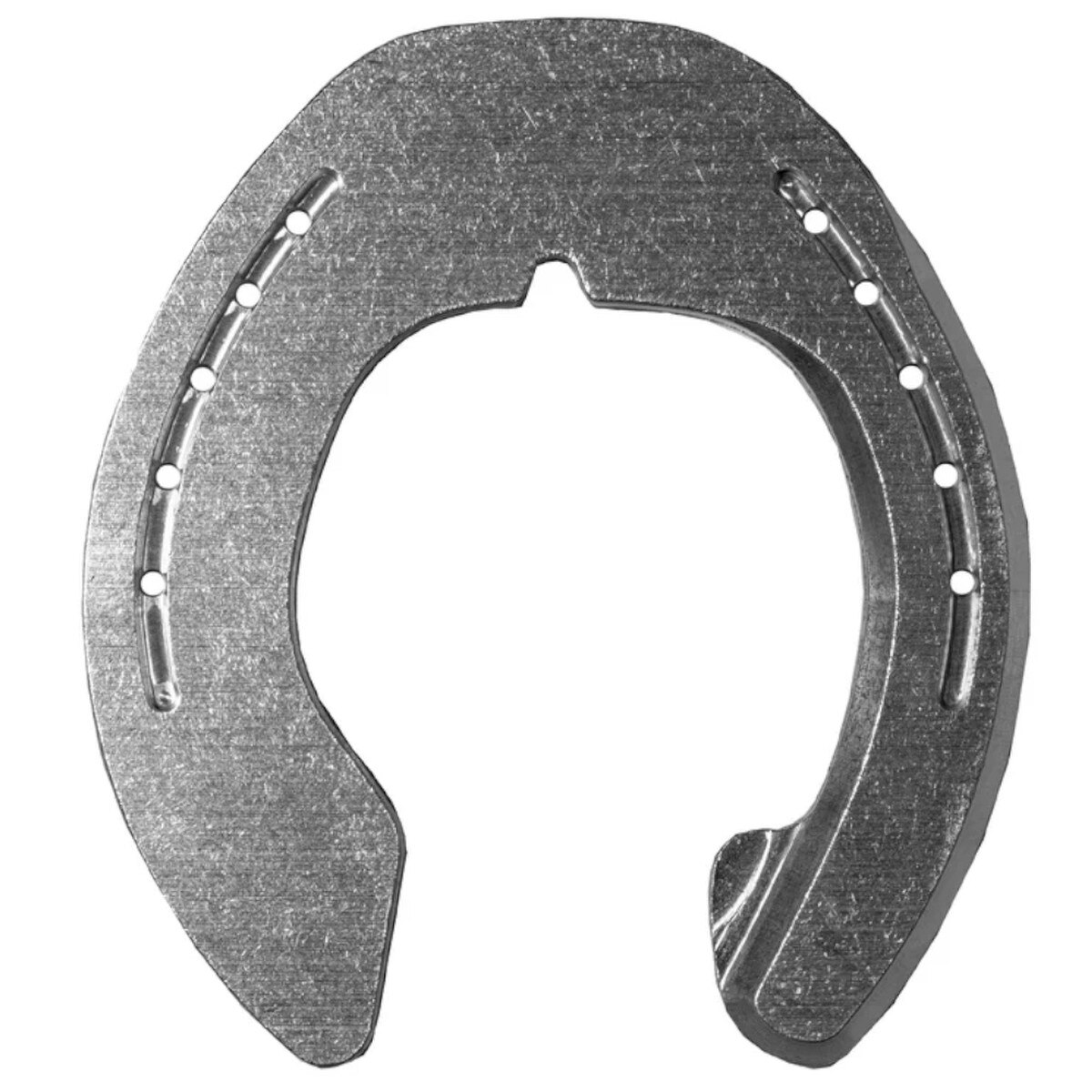

Size 10 Grand Circuit Denoix Suspensory Branch Hind | B
Designed by Jean-Marie Denoix, DVM, PhD, this hind pattern shoe is asymmetrical with a wide branch to provide support under suspensory ligament branch injuries and a narrow branch to reduce opposite lever arm.
Indications
- Suspensory branch injuries: put the wide branch under the lesion
- This is a Left Lateral or Right Medial lesion shoe
- View is from the ground side, not the foot side
Features
- Designed by Jean-Marie Denoix, DVM, PhD
- Asymmetrical hind branch configuration
- Sizes 4-10: Made from 3/8" aluminum stock
- Sizes 10-12: Made from 1/2" aluminum stock
Specifications
- Material: Aluminum
- Stock: 3/8"
- Pattern: Hind B
DIMENSIONS CHART
| Size | Width | Width (mm) | Toe to Heel | Toe to Heel (mm) | Circumference | Circumference (mm) |
|---|---|---|---|---|---|---|
| 4 | ||||||
| 5 | 4 1/2" | 114.3 | 4 15/16" | 125.4 | 13 1/16" | 331.2 |
| 6 | 4 3/4" | 120.6 | 5 3/8" | 136.5 | 13 3/4" | 349.7 |
| 7 | 5" | 127 | 5 1/2" | 139.7 | 14 1/2" | 368 |
| 8 | 5 1/4" | 133.3 | 5 3/4" | 146 | 15 3/16" | 386.5 |
| 9 | 5 1/2" | 139.7 | 6 1/16" | 154 | 15 15/16" | 404.8 |
| 10 | 5 3/4" | 146 | 6 5/16" | 160 | 16 11/16" | 423.4 |
Available Sizes 4-10 in 3/8" aluminum stock.
