Size 5 | Grand Circuit Denoix Suspensory Branch Front | B
Details
Sold Individually

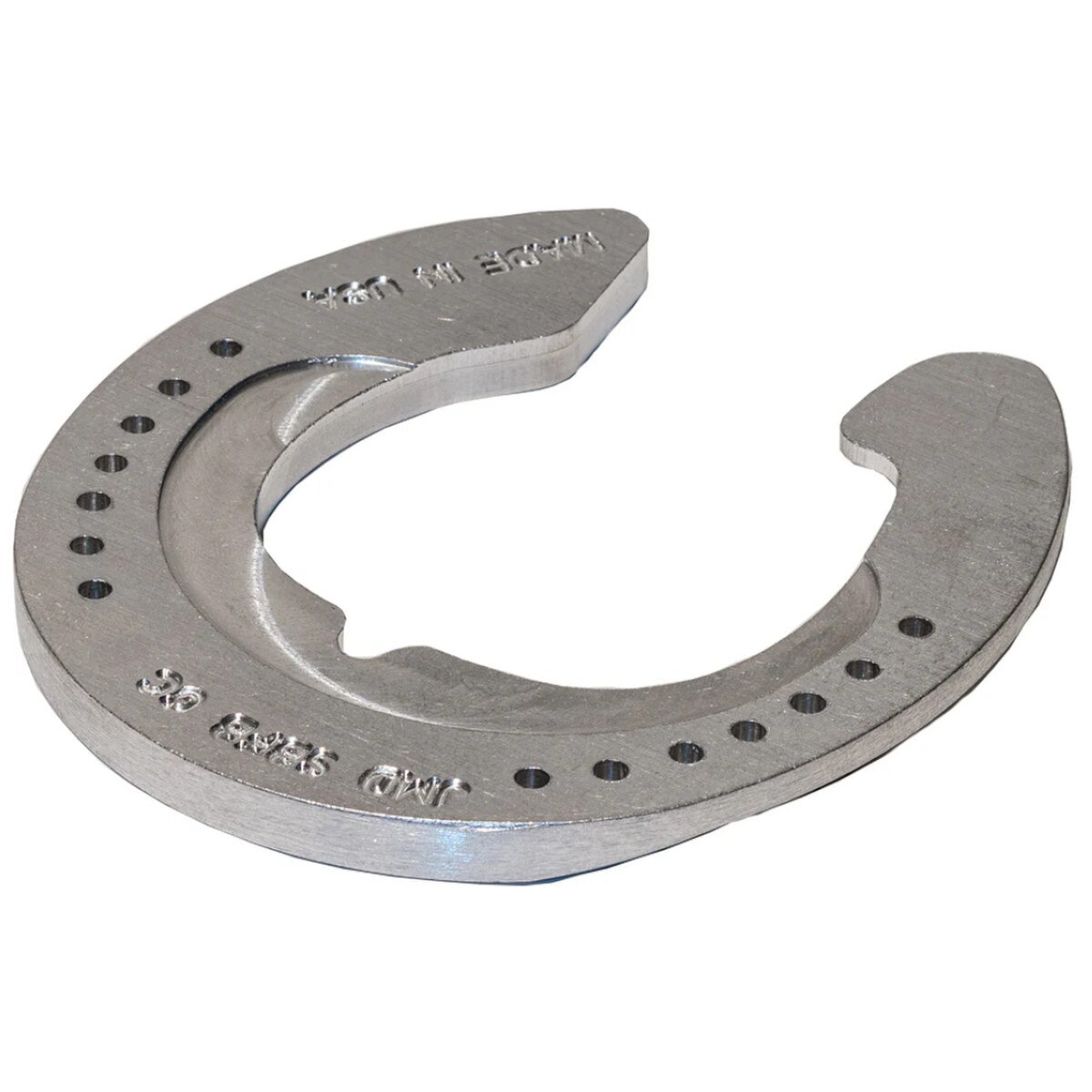

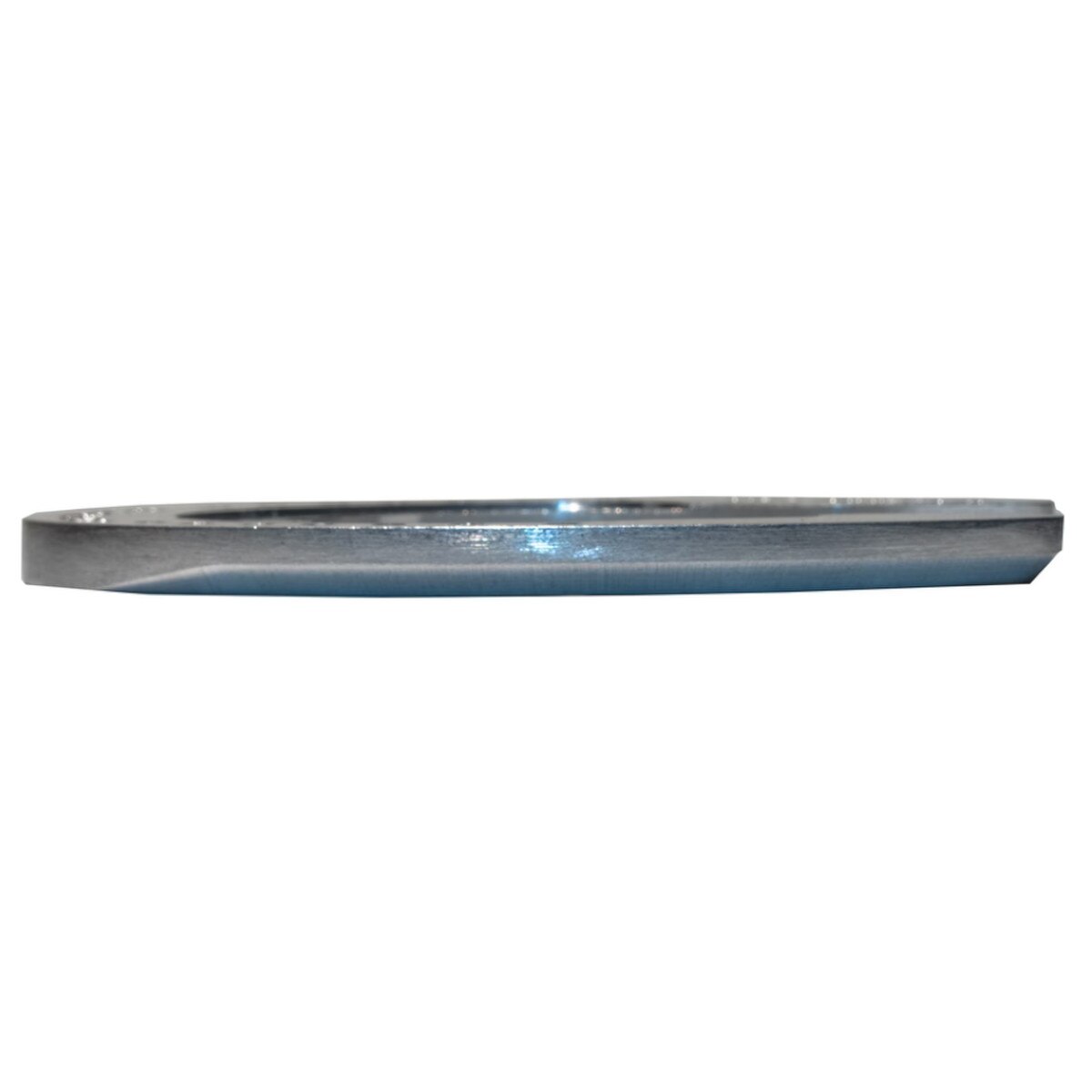

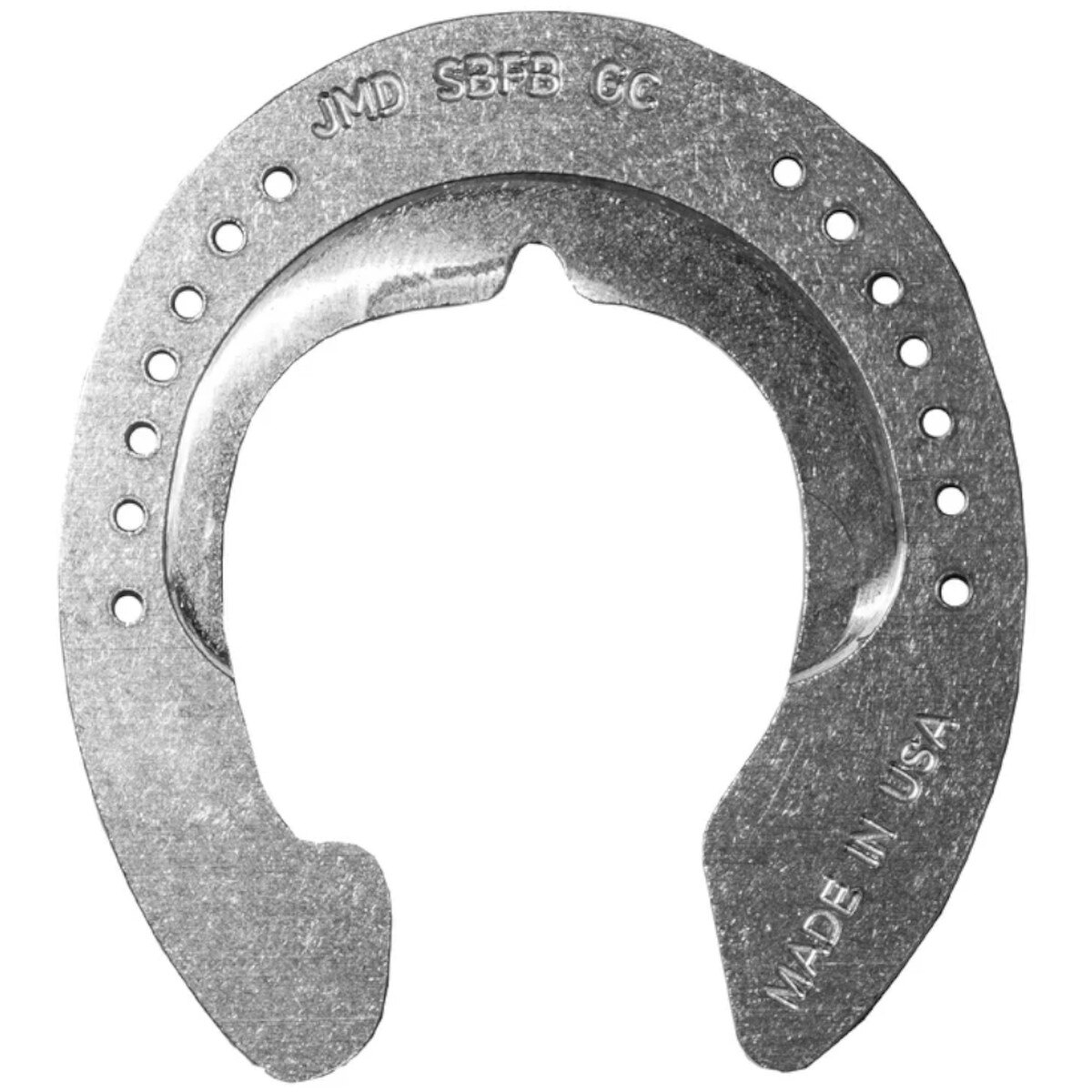

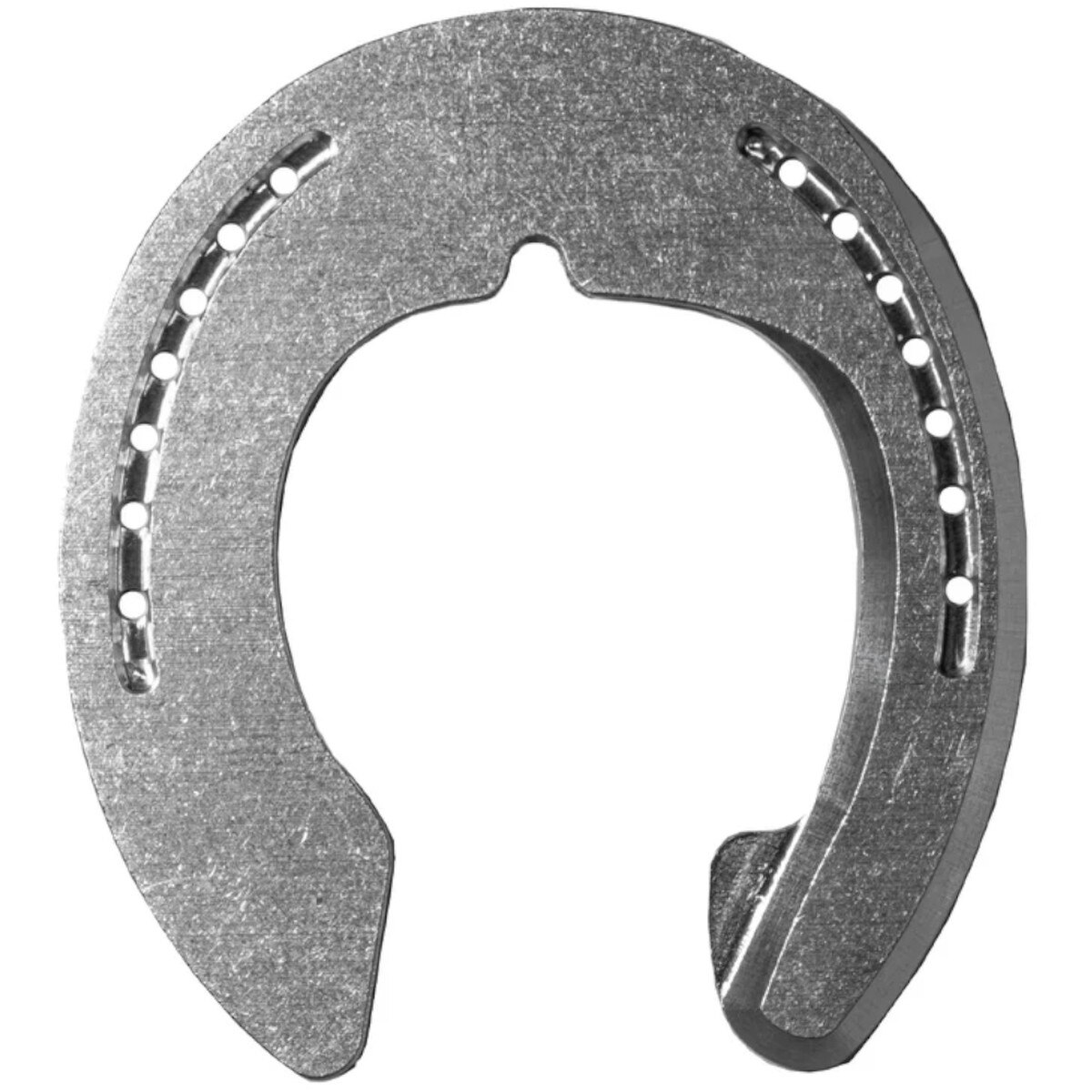

Size 5 Grand Circuit Denoix Suspensory Branch Front | B
The Suspensory Branch Shoe is designed by Jean-Marie Denoix, DVM, PhD. An asymmetric shoe with a wide branch to provide support under suspensory ligament branch injuries and a narrow branch to reduce opposite lever arm.
Key Benefits
- Designed for suspensory branch injury support
- Wide branch provides lesion support
- Narrow branch reduces opposite lever arm
- Advanced therapeutic aluminum design
Features
- Designed by Jean-Marie Denoix, DVM, PhD
- Asymmetric front branch configuration
- 3/8" aluminum stock for Sizes 4-10
Indications
- Suspensory branch injuries: put the wide branch under the lesion.
- This is a left lateral or right medial shoe.
Specifications
- Material: Aluminum
- Stock: 3/8"
- Pattern: Front B
DIMENSIONS CHART
| Size | Width | Width (mm) | Toe to Heel | Toe to Heel (mm) | Circumference | Circumference (mm) |
|---|---|---|---|---|---|---|
| 4 | 4 1/4" | 108 | 4 7/8" | 123.8 | ||
| 5 | 4 1/2" | 114.3 | 4 7/8" | 123.8 | 13 1/8" | 333.5 |
| 6 | 4 3/4" | 120.6 | 5 1/4" | 133.4 | 13 7/8" | 351.8 |
| 7 | 5" | 127 | 5 1/2" | 139.7 | 14 9/16" | 370.3 |
| 8 | 5 1/4" | 133.3 | 5 3/4" | 146.5 | 15 5/16" | 389.1 |
| 9 | 5 1/2" | 139.7 | 6 1/16" | 153.7 | 16" | 407.4 |
| 10 | 5 3/4" | 146 | 6 5/16" | 160.5 | 16 3/4" | 426 |
Sizes 4-10 are made from 3/8" aluminum stock.
