Size 6 | Grand Circuit Denoix Suspensory Branch Front | A
Details
Sold Individually
Size 6 Grand Circuit Denoix Suspensory Branch Front | A

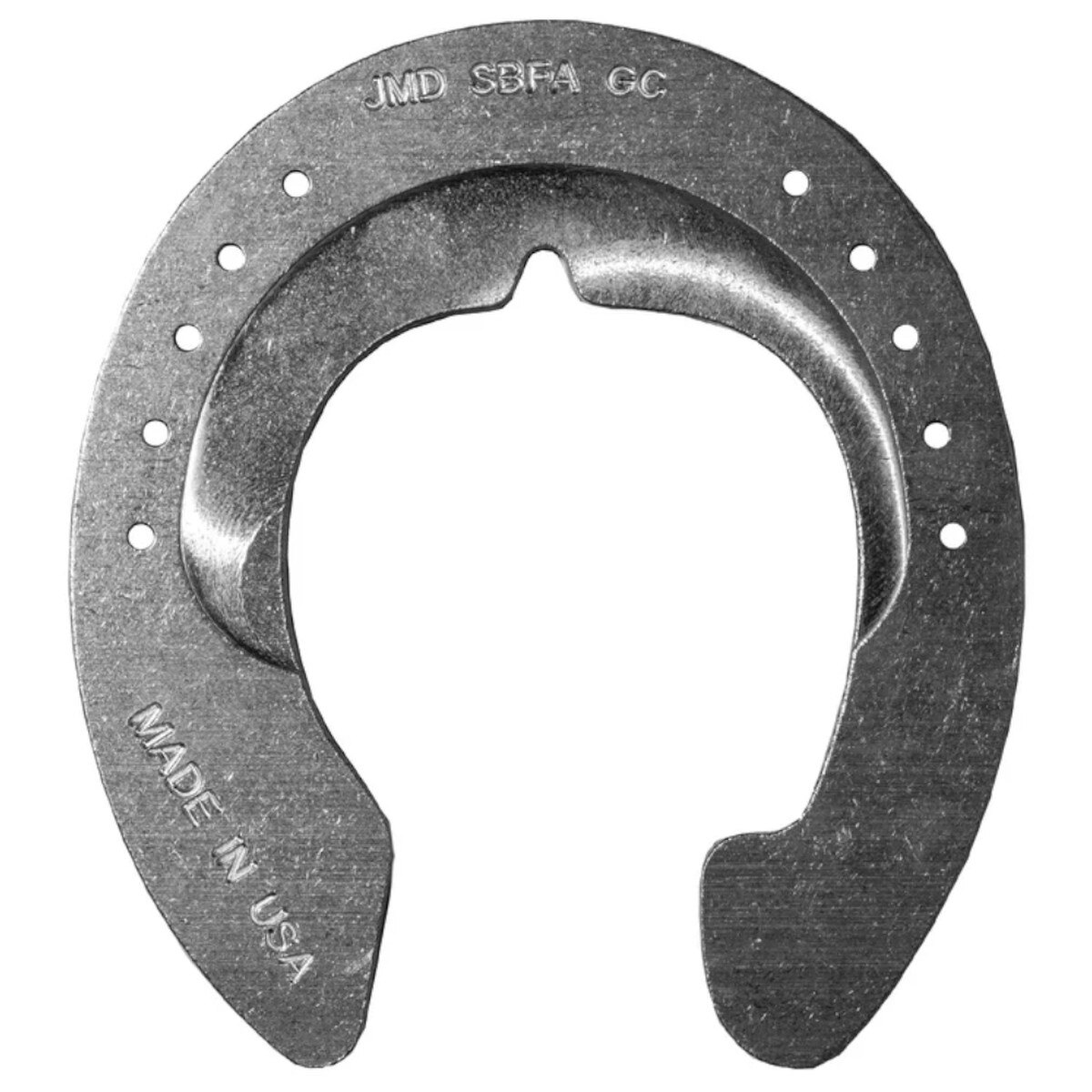

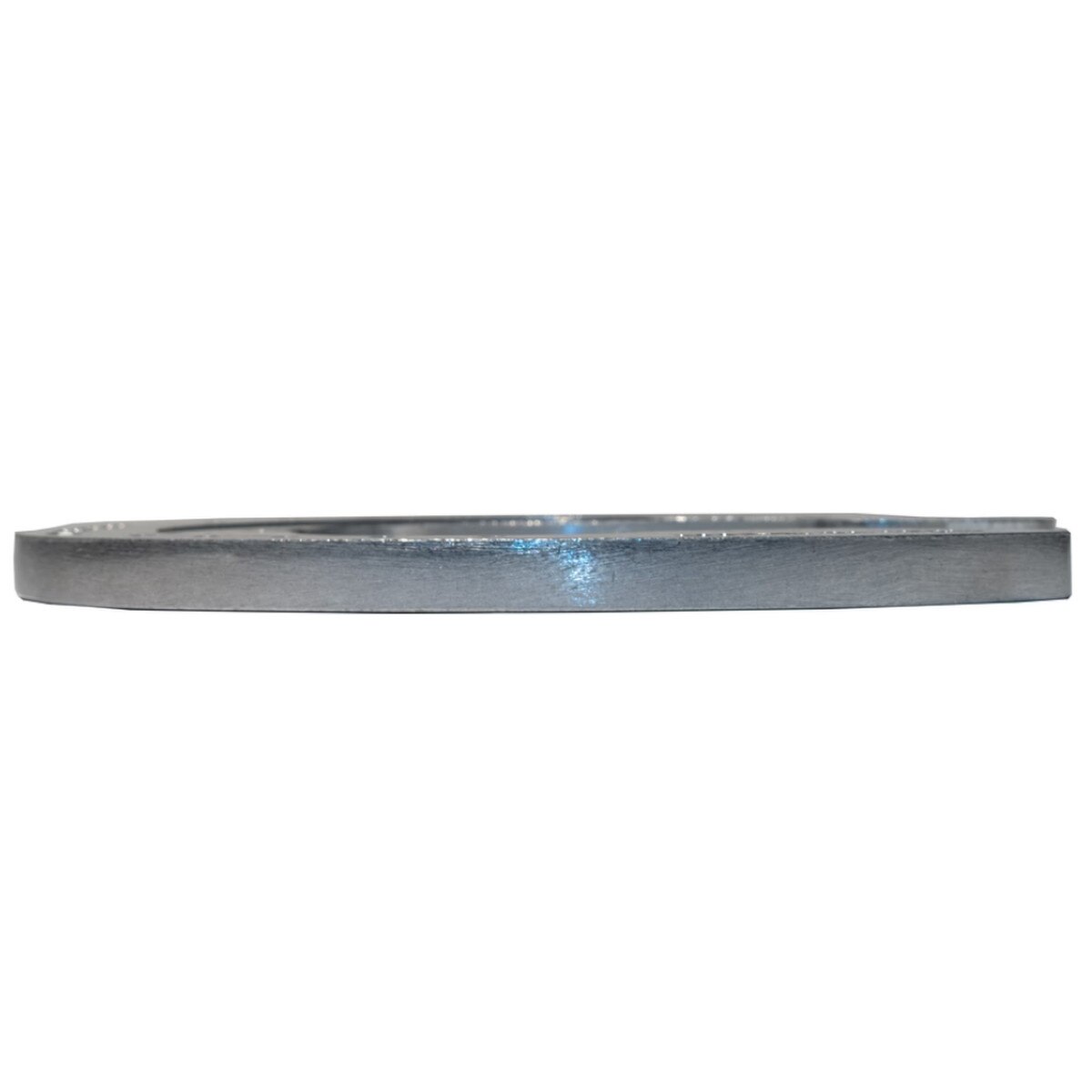

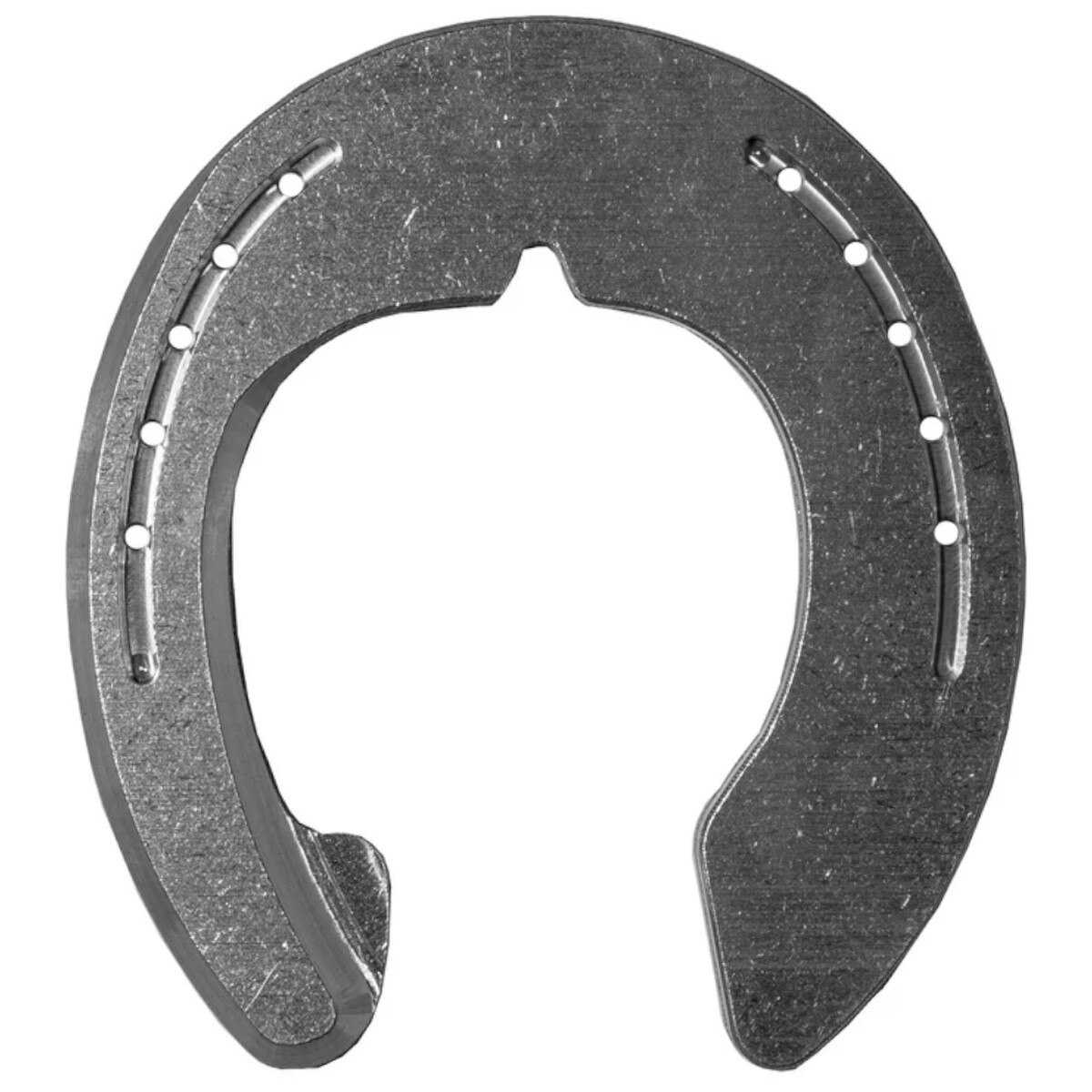

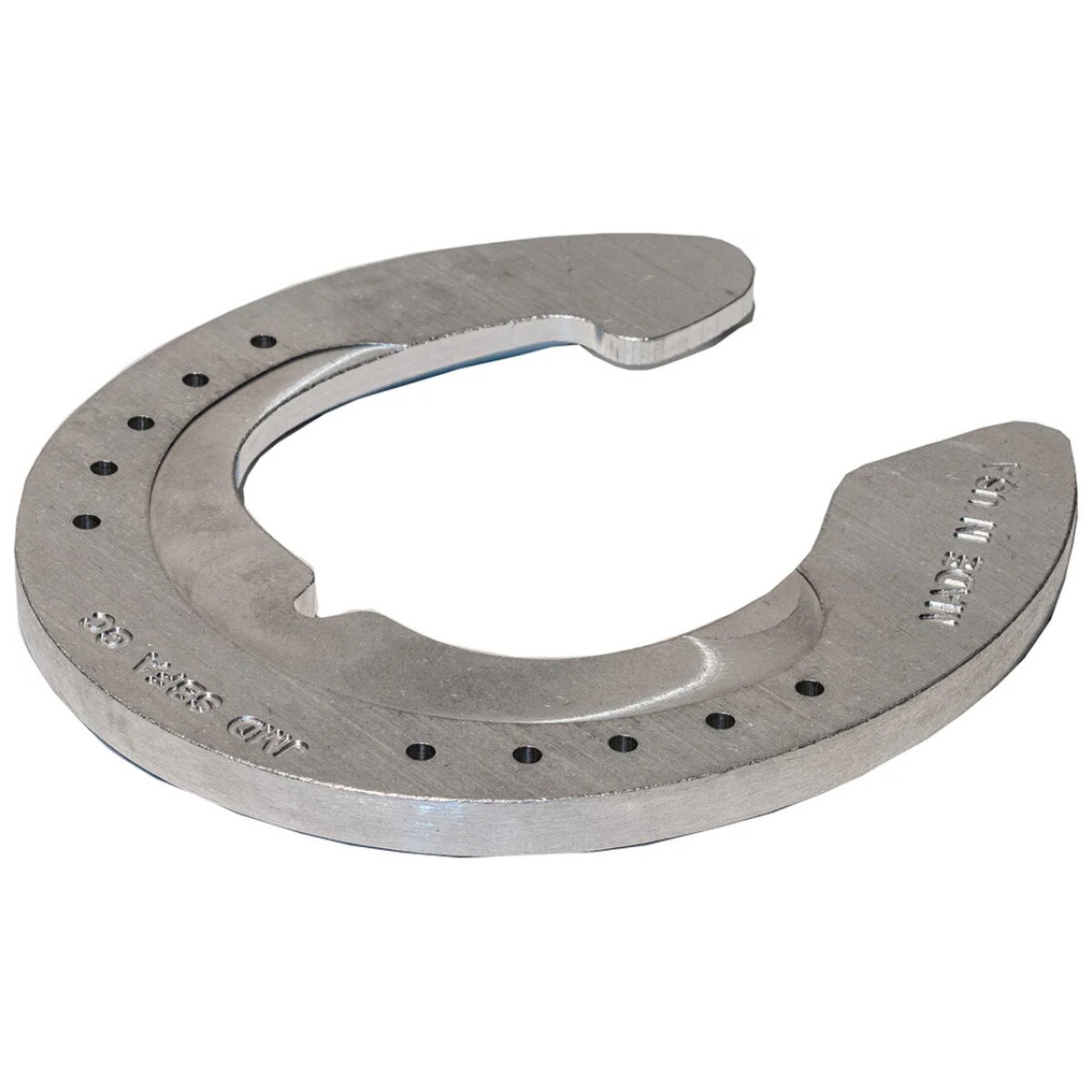

The Grand Circuit Denoix Suspensory Branch Shoe, designed by Jean-Marie Denoix, DVM, PhD, is an asymmetric therapeutic aluminum horseshoe engineered to support suspensory branch injuries through targeted branch design. The wide branch supports the lesion while the narrow branch reduces opposing lever forces.
Key Benefits
- Designed for suspensory branch injury support
- Wide branch provides lesion support
- Narrow branch reduces opposite lever arm
- Advanced therapeutic aluminum design
Features
- Designed by Jean-Marie Denoix, DVM, PhD
- Asymmetric front branch configuration
- 3/8" aluminum stock for Sizes 4-10
Indications
- Suspensory branch injuries: place wide branch under lesion
- Suitable for left lateral or right medial shoeing
Specifications
- Material: Aluminum
- Stock: 3/8"
- Pattern: Front A
DIMENSIONS CHART
| Size | Width | Width (mm) | Toe to Heel | Toe to Heel (mm) | Circumference | Circumference (mm) |
|---|---|---|---|---|---|---|
| 4 | 4 1/4" | 108 | 4 7/8" | 123.8 | ||
| 5 | 4 1/2" | 114.3 | 4 7/8" | 123.8 | 13 1/8" | 333.5 |
| 6 | 4 3/4" | 120.6 | 5 1/4" | 133.4 | 13 7/8" | 351.8 |
| 7 | 5" | 127 | 5 1/2" | 139.7 | 14 9/16" | 370.3 |
| 8 | 5 1/4" | 133.3 | 5 3/4" | 146.5 | 15 5/16" | 389.1 |
| 9 | 5 1/2" | 139.7 | 6 1/16" | 153.7 | 16" | 407.4 |
| 10 | 5 3/4" | 146 | 6 5/16" | 160.5 | 16 3/4" | 426 |
Sizes 4-10 are made from 3/8" aluminum stock.
