62 lb. | Carre Anvil

SKU CARRE28
sold by the: Eaches
$1,395.00
(0)No Reviews yet

This item is IN STOCK

Current Stock: 2

Back

Details

⚠️ HEAVY ITEM SHIPPING NOTICE ⚠️

OVERSIZE FEE: $20 Applied at Checkout

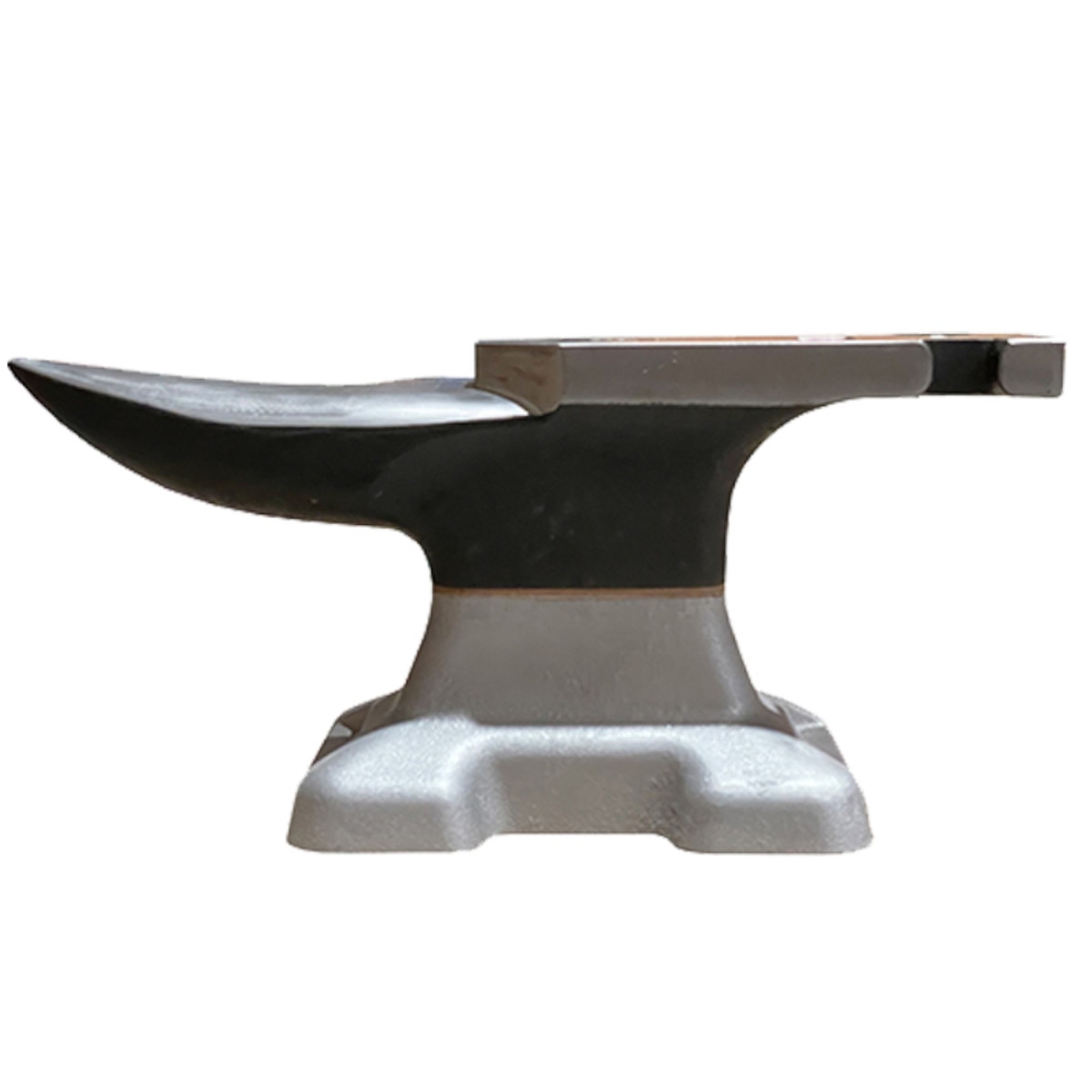

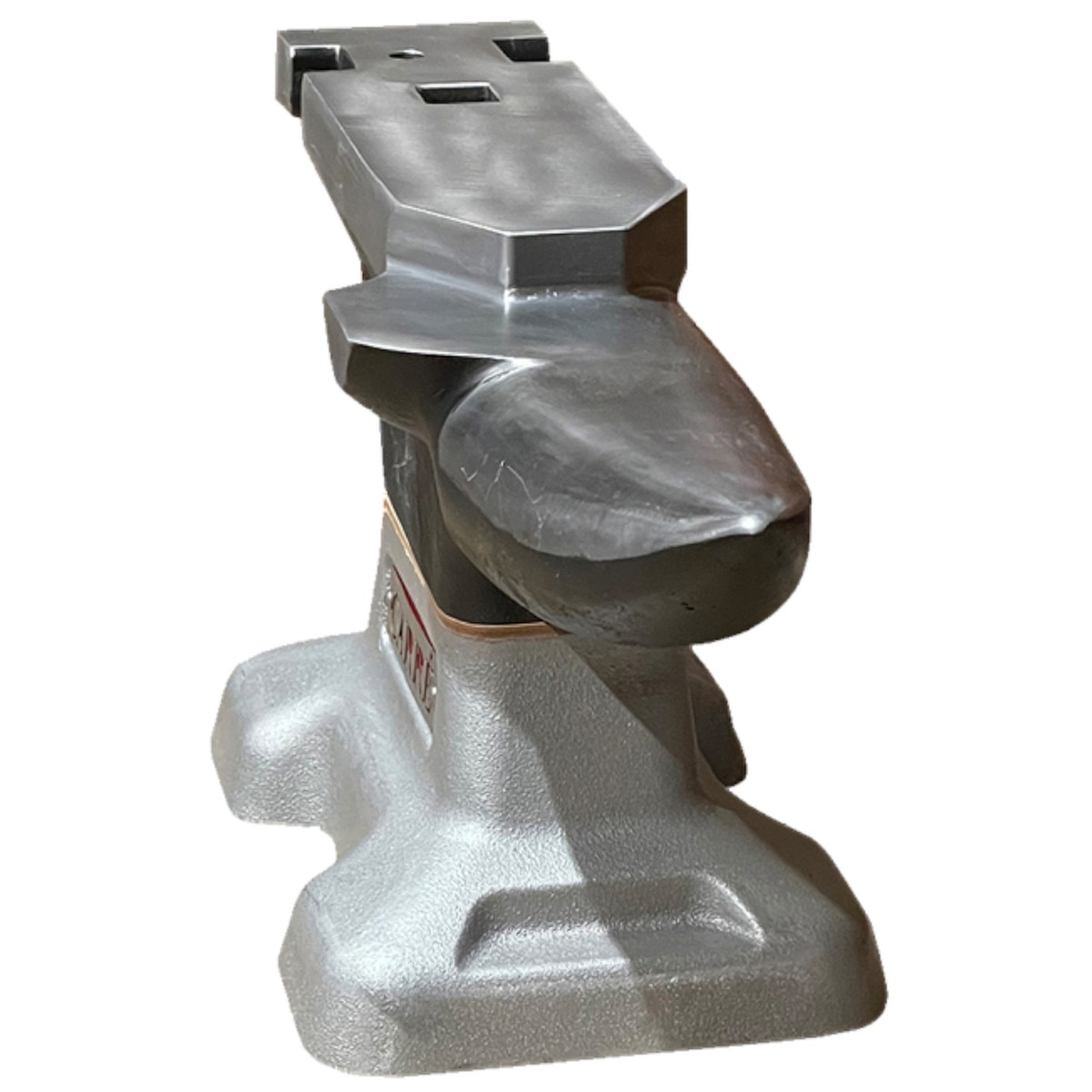

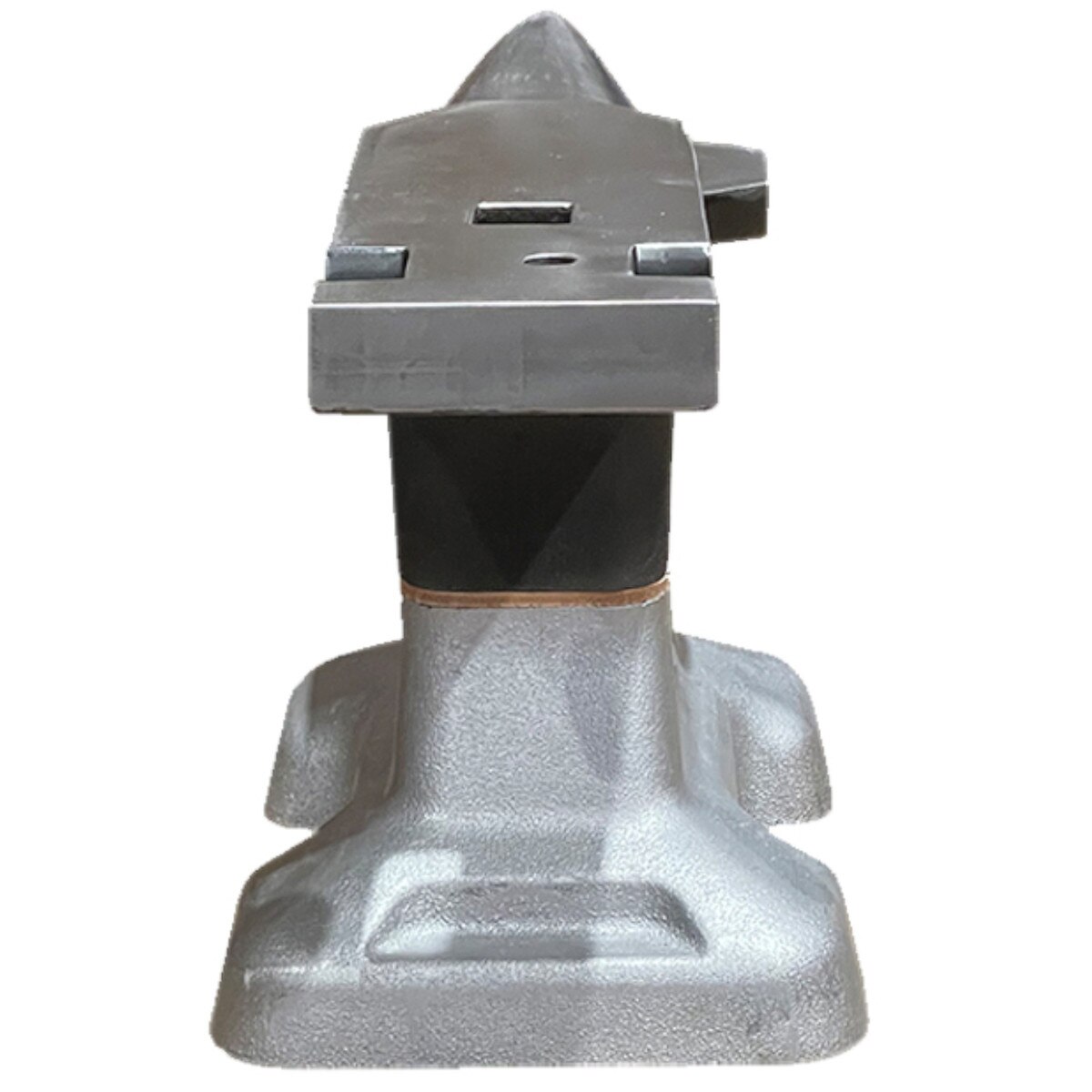

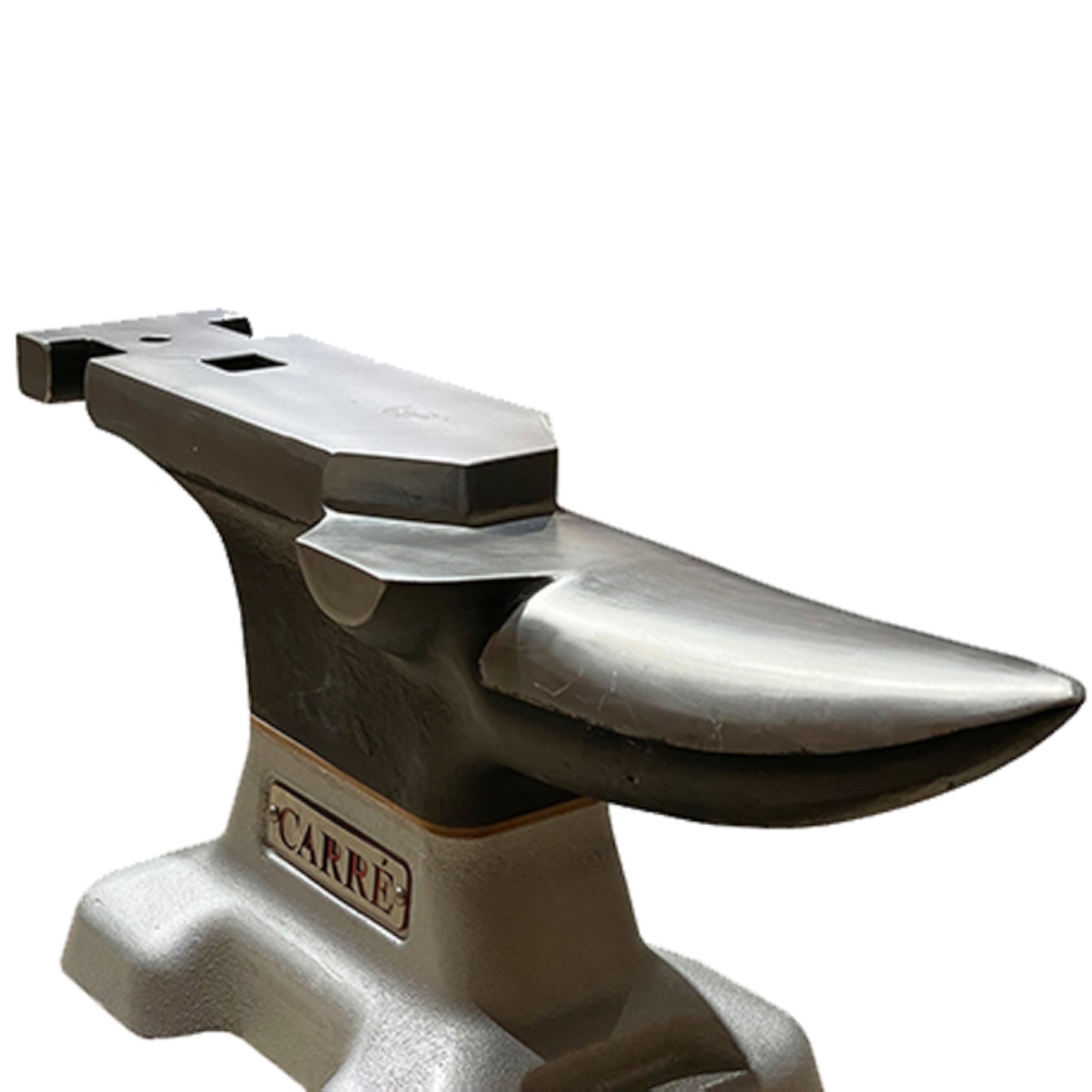

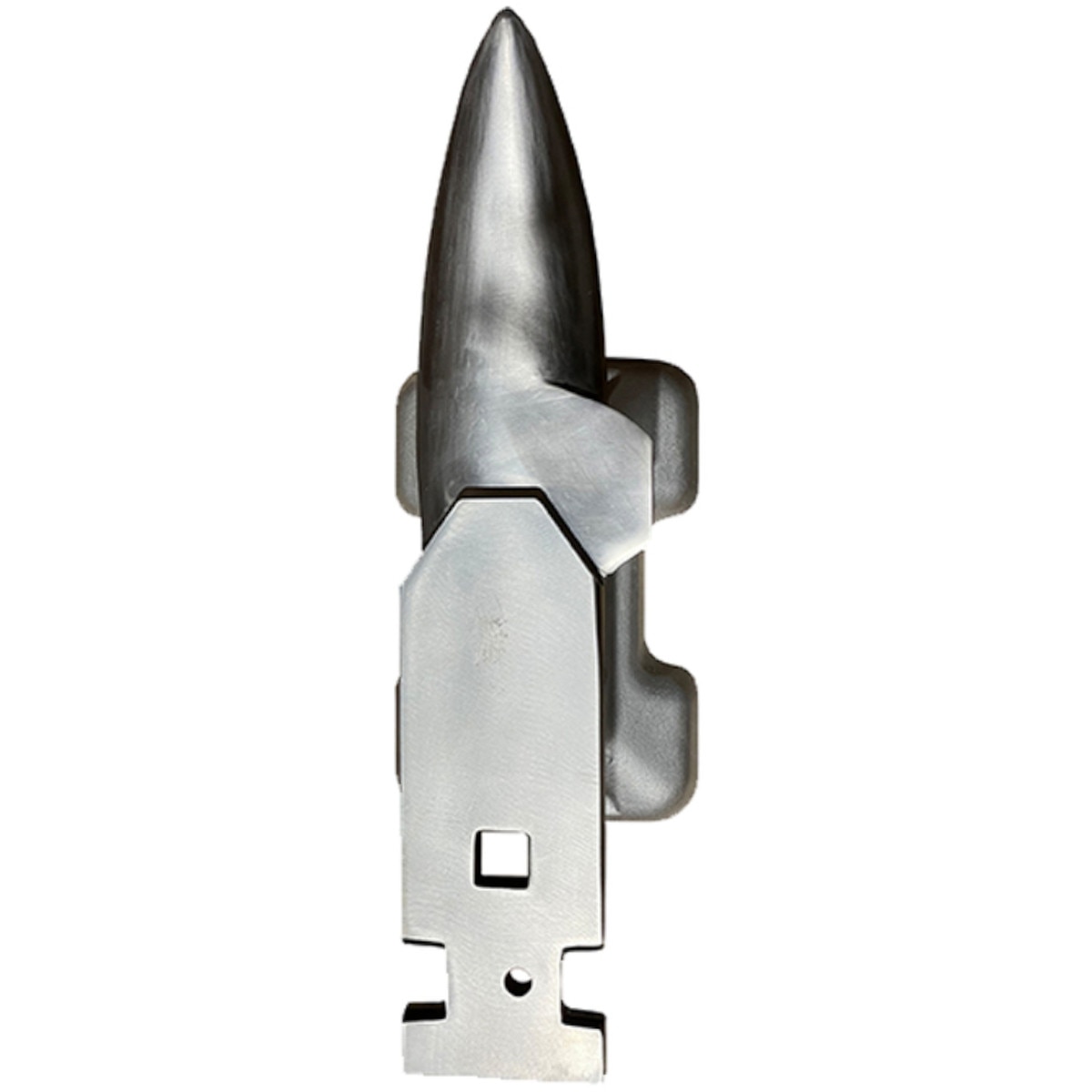

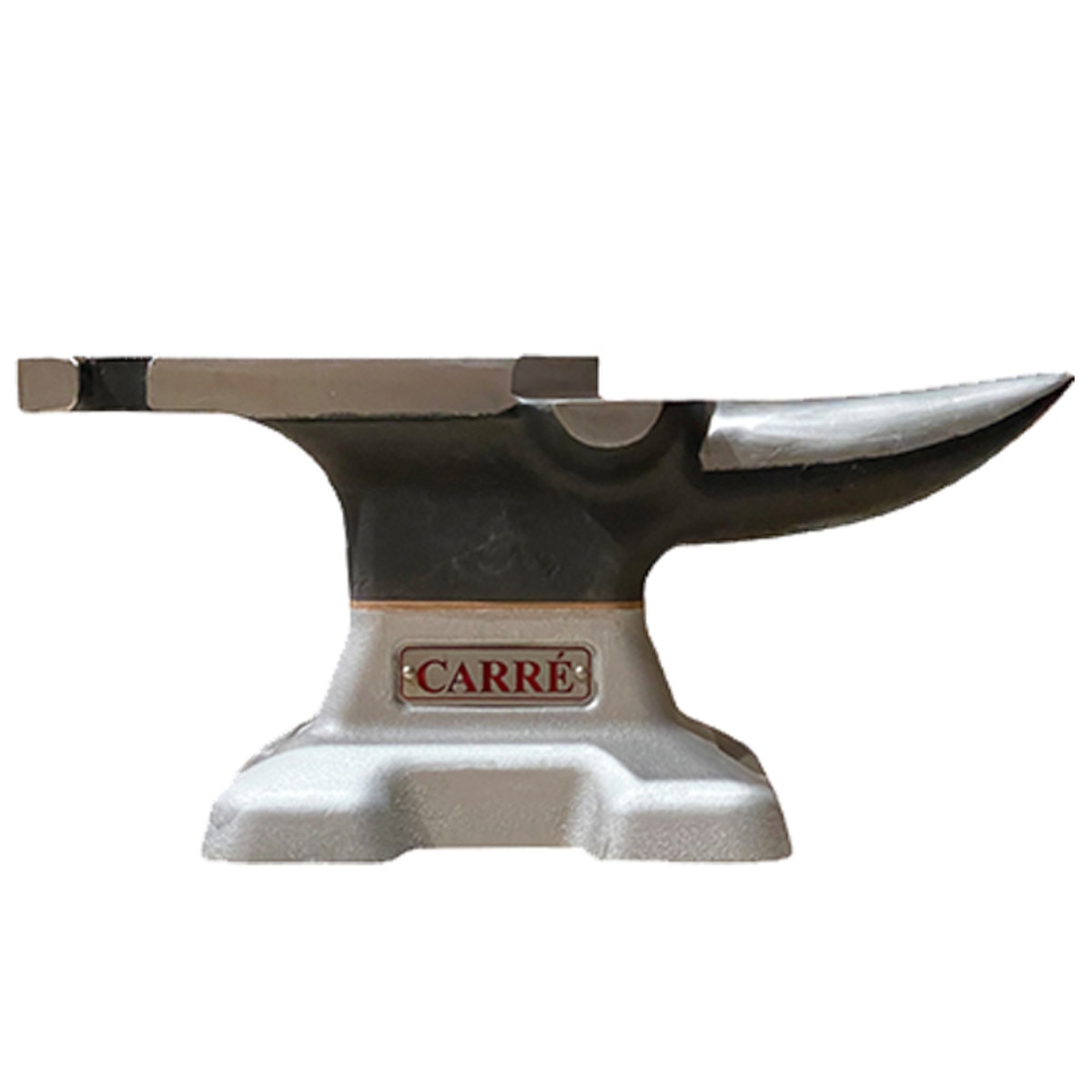

CARRE Anvil XL | 46 kg

The CARRE Anvil XL combines a compact aluminum base with farrier focused features including a clipping horn, round horn, slightly elevated anvil face, and 2 turning cams. Designed for efficient work while helping reduce sound and vibration.

Key Features

  • Aluminum base
  • Clipping horn and round horn
  • Slightly elevated anvil face
  • 2 turning cams
  • Hardy hole and pritchel hole
  • Reduced sound and vibration

Specifications

  • Weight: 46 kg (approx. 101.41 lb)
  • Overall Height: 251 mm (approx. 9.88")
  • Overall Length: 641 mm (approx. 25.24")
  • Aluminum Base Width: 388 mm (approx. 15.28")
  • Aluminum Base Depth: 179 mm (approx. 7.05")
  • Aluminum Base Height: 122 mm (approx. 4.80")
  • Anvil Face Length: 364 mm (approx. 14.33")
  • Overall Horn Length: 277 mm (approx. 10.91")
  • Horn Length (from clipping horn): 214 mm (approx. 8.43")
  • Clipping Horn Protrusion: 24 mm (approx. 0.94")
  • Anvil Face Width: 112 mm (approx. 4.41")
  • Anvil Face Width (with protruding clipping horn): 135 mm (approx. 5.31")
  • Turning Cams Diameter: 20 mm (approx. 0.79")
  • Pritchel Hole Diameter: 10.4 mm (approx. 0.41")
  • Hardy Hole: 27.6 mm per side (approx. 1.09")
